The UC-C100-T Crestron Flex integrator kit provides a customizable video conference solution for use with Microsoft Teams Rooms software. The UC-C100-T system brings the full Microsoft Teams Rooms UC experience to any meeting space.

The UC-C100-T can implement cloud-based deployment, an on-premises deployment, or a hybrid of the two. The kit supports any displays, cameras, speakers, microphones, or other AV equipment you wish to integrate (all sold separately). This includes any Microsoft Teams software compliant USB camera and USB audio conferencing interface or speakerphone (all sold separately), A populare combinations is the Crestron Flex with Logitech Rally, which gives you a proper solution with quality microphones on the meeting room table, good looking speakers and a PTZ camera combined with the power of Crestron Flex.

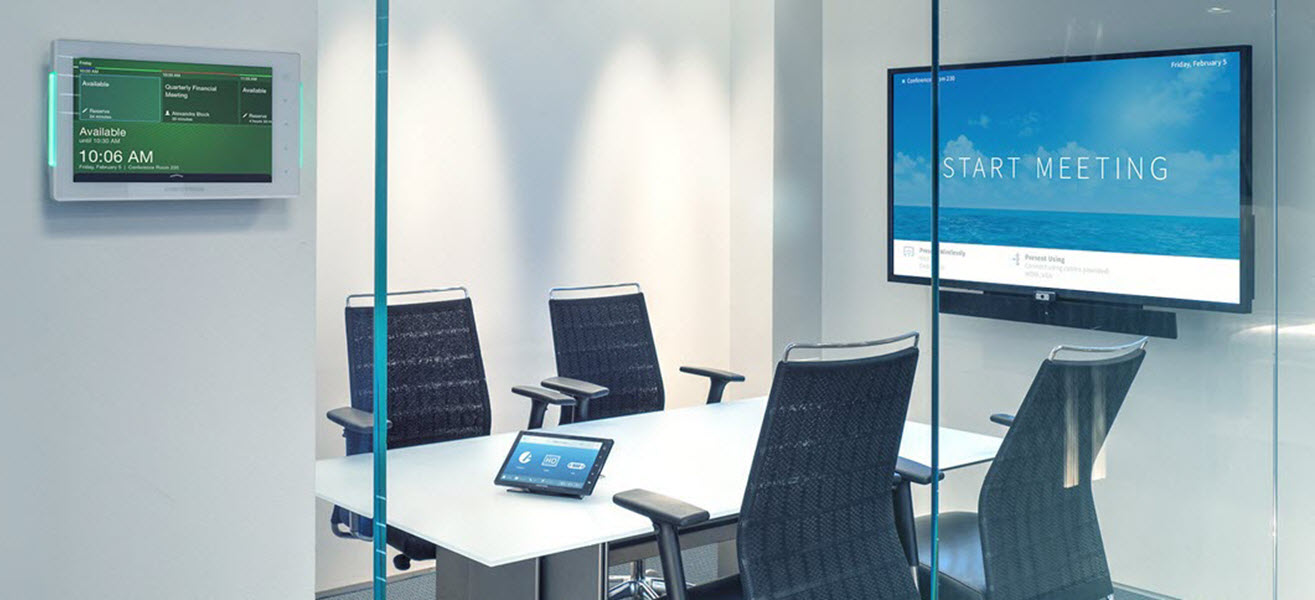

The UC-C100-T features a large 10.1-inch capacitive touch screen display with an intuitive interface for convenience and superior conferencing control. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment (sold separately).

The included UC Bracket Assembly (UC‑BRKT‑200‑S‑T‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall or attached to the rear of the display device.

The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows software update.

Highlights:

• Native Microsoft Teams Rooms application and experience, providing a consistent room experience across all your conference rooms
• Direct connection option between UC Engine and touch screen for simple installation and configuration
• Enterprise-grade security – connects and communicates securely over any enterprise or SMB network
• Network management and provisioning, system alerts, and the pairing of the touch screen to the system’s UC Engine through the XiO Cloud® service
• Supports a single video display

Crestron UC-C100-T Specifications:

• Tabletop Touch Screen
  • Touch Screen: 10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels
  • UI: Microsoft Teams UI plus optional Crestron Smart Graphics® room control UI2
  • Ethernet: 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
  • Power over Ethernet:
  • IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
    • Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management;
    • With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP;
    • Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP;
    • Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
  • PoE Injector: A PoE injector is included to power the touch screen if network PoE is not available
  • Construction: Plastic, smooth black finish, edge-to-edge glass with black surround
  • Dimensions (HxWxD): 5.29″ x 9.63″ x 4.67″ (134 x 245 x 119 mm)
  • Weight: 2.44 lbs (1105 g)
• UC Bracket Assembly
  • UC Engine: ASUS Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
  • UC Client: Microsoft Teams Rooms with Skype® for Business software functionality
  • Management Client: XiO Cloud Service
  • Content Ingest: HDMI input via HDMI to USB 3.0 converter (model HD‑CONV‑USB‑200)
  • Display Output: Single or dual display support1
  • Display Output Resolution: 1080p
  • Power: 65 W via external 100‑240VAC, 50/60 Hz adapter (included)
  • Construction: Metal mounting bracket, black, preassembled with UC Engine and HD‑CONV‑USB‑200
  • Mounting:
    • Surface wall mount behind the display device or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount
    • Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
  • Dimensions (HxWxD): 15.00″ x 14.50″ x 1.72″ (381 x 368 x 44 mm)
  • Weight: 6.64 lbs (3 kg)
