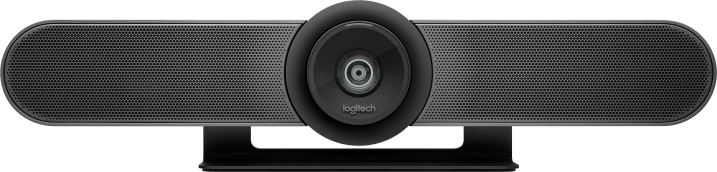

The logitech MeetUp is designed for small conference rooms and huddle spaces.
The MeetUp offers a pan/tilt/zoom lens with a super-wide 120 degrees field of view, which makes it easy for all meeting contestants to be visible during the conference call.

Audio:
The MeetUp has integrated audio which is optimized for the accustic of small meeting room, it has 3 beam-forming mics and the speakers are tuned to ensure good sound. You can now pair your MeetUp with your smartphone or tablet through bluetooth. You can use it as an extern speaker to play music too. Additionally you can purchase an expansion mic with a range of up to 4.2 meters/14 feet. This works perfectly, but with the limitations with the length of the expansion mic, its crucial that there is not much of a distance between the wall/meeting room screen and table.
Video:

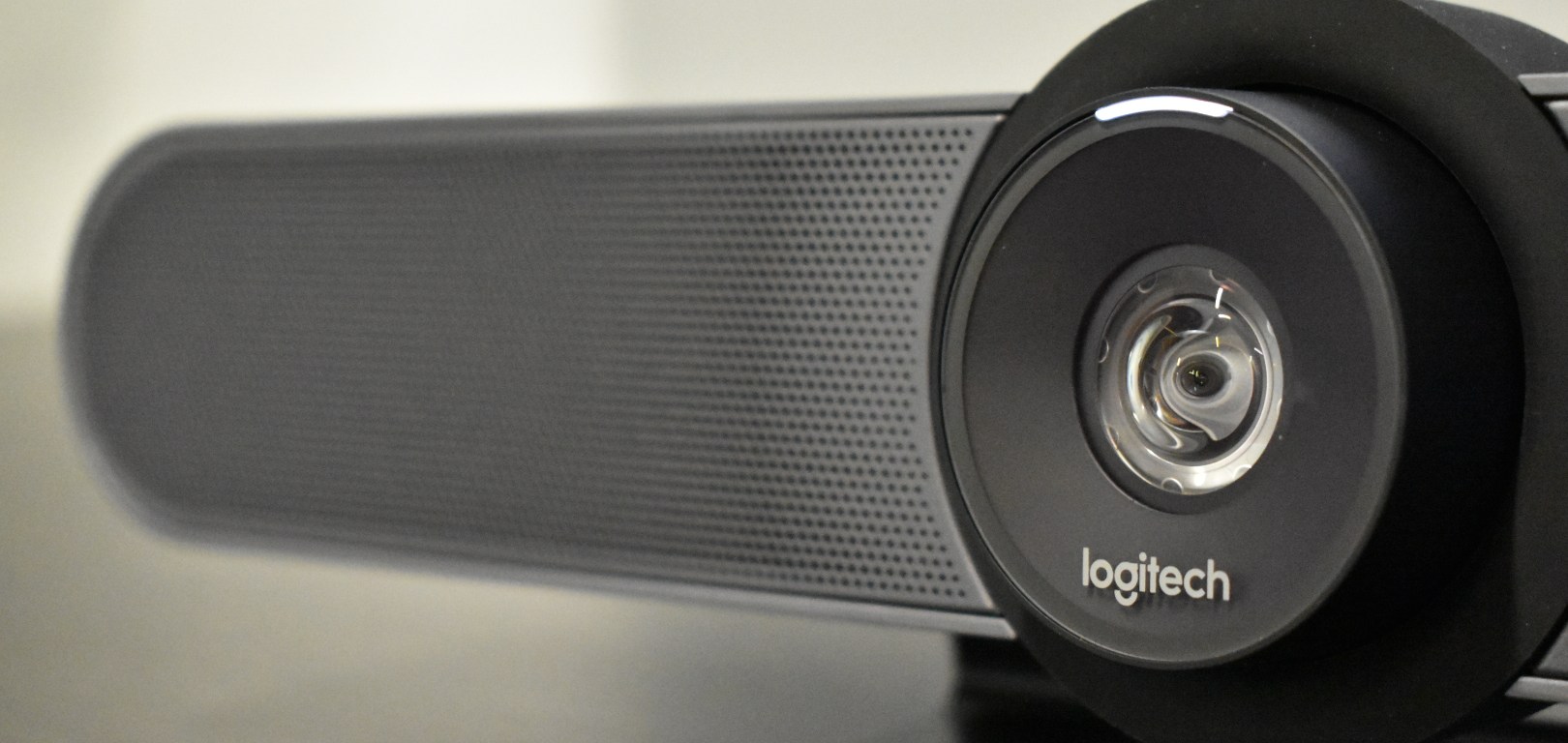

The camera has pan, tilt, zoom with a 120 degrees field of view.
It has 4K resolution or up to 3840 x 2160 pixels at 30 frames per second, but the camera is backwards compatible, so if you only have a 1080p FullHD screen then the resolution of 1920 x 1080 pixels at 30 fps is no problem either. Due to its image sensor you have up to 5x zoom, another cool thing is the possibility to have 3 pre-programmed camera presets.
Compatibility:
The MeetUp is an easy to use plug-and-play device, you only need to plug the USB connection to your meeting room computer or your laptop. Besides the easy connection, you would need calling application that recognize The MeetUp camera.
It is certified for Skype for Business, Microsoft Cortana, Cisco Jabber compatible and offers enhanced integration with Blue Jeans, Broadsoft, Lifesize Cloud, Vidyo and Zoom.
Logitech TV Mount for MeetUp lets you mount the MeetUp ConferenceCam either above or below a flat-panel monitor, and attaches to the industry-standard VESA mounting points available on most TVs and monitors.
DIMENSIONS
Main unit
Height x Width x Depth:
104 mm x 400 mm x 85 mm
Weight: 1.04kg
Remote Control
Height x Width x Depth:
83 mm x 83 mm x 10 mm
SYSTEM REQUIREMENTS
Windows®7, Windows 8.1, or Windows 10
macOS 10.10 or higher
Chrome OS™ Version 29.0.1547.70 and higher
USB 2.0 port (USB 3.0 required for 4K video)
TECHNICAL SPECIFICATIONS
- OVERALL
-
- Super-wide 120-degree field of view
- 3-microphone speakerphone
- Optional expansion microphone-ready
- 4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable); 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps); 720p HD video calling (up to 1280 x 720 pixels @ 30 fps); with supported clients
- All-in-one design
- Motorized pan/tilt
- Logitech lens
- 3 camera presets
- Bluetooth® wireless technology
- RF remote control
- Multiple mounting options, including table and wall mount; optional TV mount available
- Kensington security slot
- MICROPHONE
-
- Pickup Range: 2.4 m /8’
- Pickup Range with Expansion Mic: 4.2 m /14’
- Sensitivity: -27dB
- Microphone frequency response: 90Hz – 16kHz for full voice reproduction and high intelligibility without noise
- Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
- AEC (Acoustic echo cancellation)
- VAD (Voice activity detector)
- Microphone background noise suppression
- Pro-audio 32 kHz sampling rate
- SPEAKER
-
- Powerful rare-earth magnet
- Acoustically suspended speaker enclosure
- Volume adjustable to 95 dB SPL at 1/2 meter peak
- Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter
- Distortion: 200 Hz–300Hz < 3%, 3000 Hz–10KHz < 1%
- Peak-limiting algorithm prevents even momentary speaker clipping to prevent distortion
-
COMPATIBILITY AND INTEGRATIONS
- Plug-and-play USB connectivity
- Works with most any video conferencing application or meetings service
- Skype for Business certified
- Microsoft Cortana® certified
- Cisco Jabber® and WebEx compatible
- Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom
-
PACKAGE CONTENTS
MeetUp ConferenceCam
Remote control
USB cable: 5m
Power supply
Wall mount and hardware
User documentationWARRANTY INFORMATION
2-Year Limited Hardware Warranty
PART NUMBER
PN: 960-001102
